DELTA DFC100 WIRELESS FREQUENCY COUNTER

 Photo: Delta DFC100

Last time i introduced the Delta M2 Desk Microphone. This post is about the Delta DFC100 wireless frequency counter from the same company.

BACK PANEL
Although the DFC100 is called a wireless frequency counter it can also be used as a regular wired counter. On the back panel are 4 connecting possibilities.
Two pieces SO-239 connectors for direct connecting to a transceiver and antenna. Next to these is the slot to connect  a 12 Volt DC source.
Last but not least is the connection for the antenna for wireless measurement of the frequency from a transceiver. This antenna is included in the gift box and has a length of approx. 62 cm.

FRONT PANEL
The display reads the frequency in the range from 0.5 – 50 MHz in blue LED’s. On the left hand side is a switch to select wireless measurement on/off. On the right hand side is the general on/off switch.

POWE SUPPLY

Photo : KIM KE600

Manufacturer Delta is based in the USA. In the gift box is a USA 110 Volt AC/DC adaptor. For operation in Europe is is necessary to use a 12 Volt DC adaptor with EU plug. When we used a switching power supply it resulted in a ‘noise’ in the receiver. Maybe this was a one time event.
When using a very cheap KIM KE600 adaptor there was no noise to be heard.

CONCLUSION:
The Delta DFC100 wireless frequency counter is a good counter, easy to use. The extra option for wireless measurement of the transmitted frequency can come in handy.
Do not forget to use a good functioning 12 Volt DC adaptor.

SPECIFICATIONS:
Below is a part of the user manual that shows the specifactions for the Delta DFC100 Wireless Frequency Counter.

PS: Make sure you get a notification by e-mail when a new blog is published.
Visit www.avera-distributing.com and register your e-mail adress.

DELTA M2 DESK MICROPHONE

M2 Chrome Product and Packing Photo

Photo: Delta M2 Microphone – CHROME version

After many years in CB business it is a pleasure to be happily surprised seeing a new accessory for the CB market. Unpacking the Delta M2 base mike really gave me that warm feeling again.

GOLD AND CHROME
There are 2 version for M2 available:  Delta M2 CHROME  and Delta M2 GOLD.
Both types are exactly the same, just a different color. And ofcourse the gold version is more expensive than the chrome version.

M2Gold Product and Packing Photo

Photo: Delta M2 Microphone – GOLD version

These 2 brand new models come from USA. They come with the standard USA 4-Pin CB connector and the common Cobra/Uniden/President wiring. For the 6-Pin President radio’s we have an adaptor or an adaptor cable to convert a 4-Pin microphone to a 6-Pin radio without any soldering. Check the list of the accessories that are mentioned in the product description of these 2 microphones on our website.

Like most base microphones the amplifier in the M2 microphone needs a 9 Volt battery. That is not included in the packing to prevent damage from a leaking battery.

But that are just some technical details. Looking at this product made me happy. It looks a bit old fashioned, but it also looks robust and elegant at the same time. It is simple and technical, it is a combination of many other products that i saw in 40+ years in this business.  It is a microphone you like to have in front of you, a pleasure for the eye, you have a horse to do the ‘heavy job’. Although there are not many CB users that think talking is a difficult job.

FEATURES
The M2 is an amplified dynamic desk microphone. On top of the housing you find the controls for Tone, Modulation, the Push To Talk button with lock function, a LED for TX and a VU_meter showing the power of the modulation. On the microphone stand is a switch to turn the microphone on or off. The head of the microphe can be turned backwards or forewards depending on the preference of the user.

A quick test learned that the Delta M2 delivers a very strong and good audio signal. And to be honest, we did not expect something different from this master piece. It is not a cheap product but it feels like a privelige to use this microphone and use it.

M2Gold Side View Photo

M2 Chrome Side View Photo



PALOMAR MICROPHONE SL41

 Photo: The Palomar SL41 comes in a beautiful packing

THE BRAND PALOMAR
In the “old” days Palomar was a world famous brand in the world of CB and 10 meter. Most famous were the high quality products like linear amplifiers. From most famous brand names the ownership changed during the years. Also Palomar switched from owner. Until last year Mr Eric Lewis (USA) claimed back the name that his father, the founder of Palomar,  had made great in the past. Palomar is now back to the roots of the Lewis family.

MICROPHONE SL41
The Palomar SL41 was introduced few weeks ago. It is a new technical concept for an electret microphone. Inside the housing is an alkaline battery that powers the microphone.

Photo: inside the housing is an alkaline battery

In Europe most CB’s have a 6-pin wiring and one of the pins supplies the voltage to the electret microphone. In USA most CB’s have a 4-Pin Uniden/Cobra wiring without a voltage supplied to one of the pins. That is why the battery is operated with an alkaline AAA battery.

ADAPTER CONNECTOR OR CABLE
For testing we connected the SL41 to a President Johnson-2. We have 2 very handy items to connect a 4-Pin Uniden/Cobra wired microphone to a 6-Pin President wired transceiver.

Photo: Adapter 4-Pin USA to 6-Pin President

C4PDF6 = Adapter, Converts 4-Pin Male to 6-Pin Female with Magnum DeltaForce/President Wiring.
CABLE 0008 = Microphone Adaptor Cable 4-Pin Male to 6-Pin Female with Uniden/President Wiring.


Photo: Uniden Adapter Cable 4-Pin Uniden to 6-Pin President

For the audio quality it made no difference whatever we used, the Adapter connector or the adapter cable.

 TEST RESULT
First we tested the dynamic microphones RoadKing RK56 and Astatic 636. As these are dynamic types we were not surprised the quality was not so good on the electret type radio Johnson-2.

The Palomar SL41 is an electret type and it  gave a much better performance than the original microphone from Johnson-2.

To finish the test we connected a RD104 (Red Devil) and the DM104M6B4B. These are amplified microphones. The audio quality and the level of volume had not much difference with the Palomar SL41. That is a remarkable good result.

I heard many good reviews from Palomar SL41 and the only thing I can say now: “TESTED AND TRUE”.

SPECIFICATIONS OF SL41:
The Palomar SL41 combines modern engineering and technology with time-tested design to provide the professional driver with the ultimate noise-cancelling microphone.

    • Classic Rugged Design
    • Active Circuit Microphone with Noise Cancelling Electret Element
    • 6 Conductor, Dual Shielded Cable – Custom Palomar Made Cable
    • 16″ Coiled Cable Section – Stretches to 9′
    • Over 1 Year Battery Life from Single AAA Battery
    • AAA Battery Included – Factory Installed
    • Industrial Grade Push-to-Talk Switch
    • Dual Mount – Machined Aluminum Button + Hanger
    • Wired for 4-Pin CB Radios

If you are interested in more technical information please read the document Technology and Design.

Photo: The Palomar SL41 – View from 4 sides

UBCD3600XLT DMR-VERSIONS

DMR VERSIONS

Since the launch of the new portable scanner Uniden UBCD3600XLT there have been questions about the DMR function of this receiver. There are many different versions of DMR in the market and people ask which types of DMR can be detected.

The USA  models BCDx36HP need an upgrade to detect all mentioned DMR systems. The European model UBCD3600XLT does not need an upgrade to cover these DMR systems.

Using the European model Uniden UBCD3600XLT or USA  models BCDx36HP radios ( upgraded with the DMR upgrade), you can now seamlessly monitor unencrypted channels on the following system types:

  • Conventional Analog channels
  • Conventional P25 Digital channels
  • Motorola Type I and Type II Trunked Radio systems with Analog and Digital (P25) Voice
  • EDACS Analog trunked radio systems
  • LTR Analog trunked radio systems
  • APCO Project 25 Phase I and Phase II Digital Trunked Radio systems
  • EDACS trunked radio systems with ProVoice channels
  • Conventional Digital Mobile Radio (DMR) channels
  • MotoTRBO Capacity Plus Trunked Radio Systems
  • MotoTRBO Connect Plus Trunked Radio Systems
  • MotoTRBO Linked Capacity Plus Systems
  • DMR Tier IIITrunking



TARGET BLU EYE – TETRA / ASTRID / C2000 / AIRWAVE

SCANNERS AND RADAR DETECTORS IN EUROPE

The communication from police and emergency services (fire department and ambulances) in most European countries is based on TETRA technology.
Tetra is a kind of trunking system and very often the users apply scrambling to make ear dropping impossible. So with regular scanners it is impossible to listen to the TETRA communications.
Where in USA the use of radar detectors is legal in many states, in Europe this is illegal in most countries. An example; in The Netherlands a dealer can be fined for 500 euro for EACH radar detector that there is available for sale.

So in Europe listening to police communication or using a radar detector is impossible to prevent getting speeding tickets. Now a days most drivers use apps on the phone to be warned for mobile or stationary speed traps. These are not ‘dynamic’ information systems and are legal to use in most European countries.

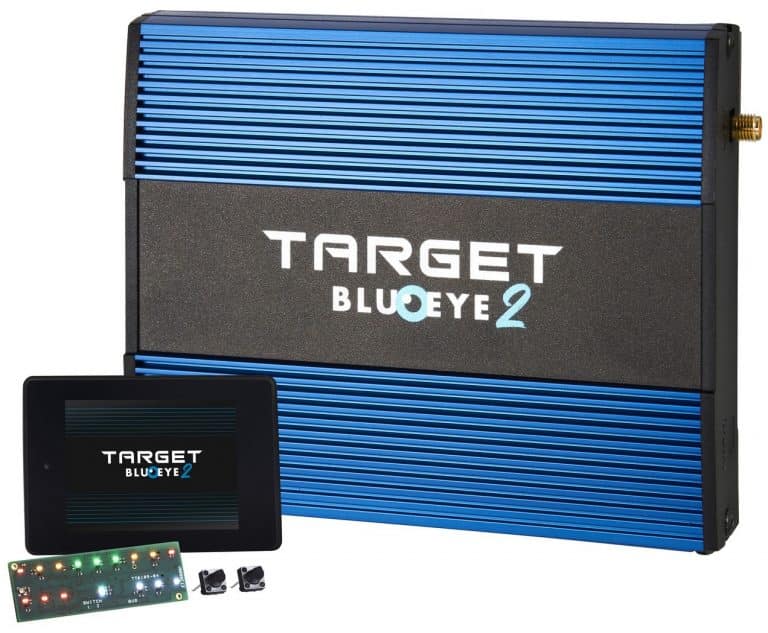

                                        Photo: Receiver and Display



TARGET BLU-EYE
Police and emergency vehicles use high speed when there is an incident. Regular drivers often are frightened away when they are approached by a blue light vehicle on high speed.
To prevent frightened reactions from drivers that might cause dangerous situations on the road, Blu Eyes was developed. It warns drivers that emergency vehicles are coming close.

HOW IT FUNCTIONS
The TETRA system does not only transmit communications, but also a GPS signal to know where the vehicle is located. Listening to encrypted communications is illegal, but receiving a GPS signal is strictly legal.

The Blu Eye detects the signal from an emergency vehicle and the device informs with an acoustic or visual signal or that vehicle is coming close or moving away. That is why the Blu Eye is a great warning system for approaching emergency vehicles.

Last year the Blu Eye came in the news, not because people used it as a warning for speed traps by the police, but because criminals used the set also in buildings. If a police car came close the set gave a signal so they knew a police car or emergency car was approaching the location.

They who know how the TETRA system and the police operate do know that when it is ‘detective’ work officials will not use the Tetra system. In these cases they prefer cell phones or special frequencies outside the TETRA band. Also in case a transceiver is switched off there will be no GPS signal to detect.

PRICE AND DELIVERY
The target Blu Eye has an end user price for Euro 999 including VAT (Sales Tax)
The set comes complete with a covert bumper antenna.

+++++++++++++++++++++++++++++++++++++++++++++++++++

FACTORY INFORMATION

BASED ON TETRA TECHNOLOGY
Target Blu Eye is based on TETRA technology. Target Blu Eye is a unique and worldwide patented traffic safety system that warns you in advance for approaching emergency service vehicles. Even if such a vehicle is not using its siren and flashing lights. Due to Target Blu Eye you will be warned with an acoustic and visual alert. The signal strength meter on the control display allows you to see at first glance whether an emergency vehicle is approaching you or moving away from you.  Not intended as a warning system when speeding, but it might help to slow down your speed when accidently driving to fast.

Starting December 12 – 2016 the covert vehicle bumper dipole antenna, type Panorama VCD-S1-5F is added free of charge.
Photo: Covert bumper antenna

FEATURES, FUNCTIONS AND SPECIFICATIONS:

Does Target Blu Eye function abroad?
The Tetra network for emergency services is also used in the countries surrounding The Netherlands, such as Belgium, Croatia, Germany (nationwide in 2014), Austria, Great Britain, Scandinavia, Slovenia, Spain, Portugal, Hungary and Italy.
Target Blu Eye is Based on Tetra Technology.
BE: In Belgium the system is called ASTRID and Blu Eye functions very well in Belgium.
ES: In Spain Blu Eyes functions in and around Barcelona and the North of Spain. Guardia Civil is using old TetraPol system and is not detected by Blu Eye.
NL: In The Netherlands the system is called C2000
UK: In UK the system is called AIRWAVE.
FRANCE: France Authorities use an old TetraPol Network. Blu Eye does not function on TetraPol because there is only one synchronisation pulse each minute.

This is link to official BLU-EYE website. Now you can find there information in Dutch, English, French and Spannish.
Blu Eye website

The innovative and new traffic safety system Target Blu Eye consists of a central unit, a control display and an external antenna. The system is based on TETRA network. If an emergency service, e.g. a police car, is nearby, you will be warned in advance with an acoustic and visual alert. The signal strength meter on the control display allows you to see at first glance whether an emergency vehicle is approaching you or moving away from you.

Acoustic warnings: The communication system used by emergency services in your country generates four types of communication patterns. Target Blu Eye recognizes all four patterns and produces four different acoustic signals. All signals indicate the presence of an emergency service close to you. For more detailed information, read the user manual.

Visual warnings: Besides acoustic warnings Target Blu Eye also generates visual warnings by means of the signal strength meter on the control display. If an emergency vehicle approaches you, regardless from which direction, the signal strength meter gives you an estimated indication about the distance between you and the emergency vehicle. For more detailed information go to the user manual.

Sensitivity mode: Two sensitivity modes can be selected on the Target Blu Eye control display: 1.Highway mode: in this mode Target Blu Eye offers the highest sensitivity, which allows the system to recognize emergency services from a large distance. 2.City mode: in this mode Target Blu Eye offers a lower sensitivity. This mode is recommended for use in urban areas. De detection range of Target Blu Eye varies from hundreds of meters up to approximately one kilometre. The range depends on the selected sensitivity mode and the environment. Due to this highly advanced technology, Target Blu Eye is able to warn you in advance for approaching emergency services, such as:
◾ Police cars (marked and unmarked cars)
◾ Police motorcycles
◾ Ambulances
◾ Fire trucks Due to Target Blu Eye you will increase your own safety, the safety of other drivers and the safety of the emergency services.

The advantages of Target Blu Eye:
◾ Warns you for approaching emergency services such as marked and unmarked police cars, ambulances and fire trucks.
◾ Prevents unpredictable and dangerous manoeuvresIncreases your own safety and the safety of other road users.
◾ Prevents material damage & personal injuries.
◾ Indicates whether an emergency service vehicle is approaching you or moving away from you.  Increases a relaxed way of driving.
◾ Compact sized and easy to install.
◾ Two years warranty.  Being of assistance to emergency services.
◾ Target Blu Eye: an eye for safety.

DONTT BE SURPRISED WITH TARGET BLU EYE GET A REAL-TIME WARNING FOR APPROACHING EMERGENCY VEHICLES!

Is it legal to use Target Blu Eye in Europe? Yes, the use of Target Blu Eye is legal since the system is only informing the driver whether an emergency service is nearby. Moreover, Target Blu Eye does not make any difference between police vehicles, ambulances or fire trucks. You will be warned of all types of emergency vehicles. We would like to emphasize that Target Blu Eye is not able to decode the radio messages broadcasted by the TETRA network.

PACKING INCLUDES: 1 Pc of Central Unit. 1 Pc of Control Display. 1 Pc of Standard Antenna with 2,5 meter Antenna Cable. 1 Pc of Cable between Central Unit and Control Display. 1 Pc of Power Cable Including Fuse. 1 Pc of SD Card. 1 Pc of Quick Start Manual in Dutch, other lauguages to be downloaded. 1 Pc of Panorama VCD-S1-5F =  Covert Vehicle Bumper Dipole Antenna for TETRA.

IN CLOSE QUARTERS OR WHEN CLIMBING, RETRACTABLE TETHER KEEPS HEAVY TOOLS CLOSE TO BODY.

Below an article about the GearKeeper RT3-5605. When working on Heights it is important to tether all tools and items you bring up. Because when dropping tools or other items hughe accidents can happen.

Minimize dangling tool entanglement with new Gear Keeper® heavy-tool retractable tether.

gearkeeper-with-screw-machine

Photo: RT3-5605

RT3-5605 is engineered so that the tool, application and recoil/retraction force are in balance. Designed to avoid worker fatigue in order to maintain productivity, only minimal force is necessary to extend the RT3-5605 tether for use.

Gear Keeper’s new RT3-5605 heavy-tool retractable tether’s ultra low profile keeps tools close to the body when stored while still allowing complete accessibility when in use. The retractor employs a very low 198 gram (7 oz) force to avoid arm strain when extended, but strong enough to keep the line taught to avoid snagging or interference with the work being performed. The retractor mechanism’s force is designed to retract the lanyard, not the tool. When the tool is retracted, lanyard exposure is minimized to avoid snagging, especially when the tool is also placed in a tool bag/pouch.

Using a retractable tether for heavy hand tools is particularly important when working in close quarters or climbing. Gear Keeper’s new RT3-5605 heavy-tool retractable tether’s ultra low profile keeps tools close to the body when stored while still allowing complete accessibility when in use.

The RT3-5605 heavy-tool tether has a generous reach that extends more than 139 cm (55”).

gearkeeper-with-screw-machine-2

Photo: Low retraction and arm length reach

Like other retractables in the Gear Keeper line, the RT3-5605 is engineered so that the tool, application and recoil/retraction force are in balance. Designed to avoid worker fatigue in order to maintain productivity, only minimal force is necessary to extend the RT3-5605 tether for use.

The RT3-5605 heavy-tool tether has a generous reach that extends more than 139 cm (55”). The strong, impact absorbing Nylon webbing for tools up to 1.58 Kg (3.5 lbs) does not require an additional shock absorbing lanyard end. Tools are attached via a Stainless Steel, thumb-controlled, locking-gate carabiner. The RT3-5605 also reduces arm strain when working with heavier tools; the tether features a thumb-controlled gear lock to secure the tool at any extension length. Included with the tether is a lanyard loop strap that can adapt virtually any tool of appropriate weight to be cinched securely to the tether.

According to John Salentine, VP of Hammerhead Industries, “Workers do not have to dance around a long, dangling tether or drag their tool on the floor.” Salentine added, “This unique heavy-tool retractor makes work safer, more efficient and simplifies every repair, maintenance or manufacturing project.”

RT3-5605 retractable heavy-tool tethers including the lanyard loop strap retail for Euro 35.99 excl VAT per unit. For bulk pricing (50 or more) call Avera-Distributing. The full line of Gear Keeper instrument tethers and accessories are available on the company’s website at gearkeeper.eu.

A free, sixteen-page “Safety Engineer’s Guide to Tool Tethering” containing a tethering guide for tools with and without attachment points and related product information is available. Use this link to get your free copy: http://www.avera.nl/promotion.asp .

Also two video’s are available:

Video 1: https://www.youtube.com/watch?v=JQGny6RDCCA

Video 2: https://www.youtube.com/watch?v=uqzUfI2xTx0

WILSON POWER ACCESORIES

World famous are the super high quality Wilson antennas like Wilson 1000, Wilson 5000, Little Will and others. But you can also find high end 12 Volt accessories  from the famous Wilson brand.

WILSON 12-VOLT POWER PLUG  (p/n 30512VPP)

30512VPP Photo HQ

Photo: Wilson 12-Volt Power Plug

This is a great item, I wish I had this years ago when I still had time to experiment with all kind of electronic equipment in cars. It is so simple, but so handy. Put the plus and minus in the terminals and you have 12 Volt on the power leads. It is 10 Ampere fused so it can handle a lot of current.

30512VPP Photo Product in Packing

Photo: Wilson 12-Volt Power Plug – product in packing



WILSON 12-VOLT EXTENSION CORD (p/n 305203ECUSB)

305203ECUSB Photo HQ                                     Photo: Wilson 12-Volt Extension Cord

Imagine you have a 12VDC Cigarette Lighter Socket and you want to change the location. This device is a Cigarette Lighter Plug with a cable of 360 cm with a Cigarette Lighter Socket + a USB Port with 2.4 Ampere.

So the cable allows you to get a Cigarette Lighter Socket and USB Port exactly where you want these to be located. A quick release mounting bracket is included in the packing.

305203ECUSB Photo product in packing

Photo: Wilson 12-Volt Extension Cord – product in packing



WILSON 12-VOLT POWER OUTLET (p/n 30512V2USB)

30512V2USB Photo HQ

Photo: Wilson 12-Volt Power Outlet

This device allows you to have a cigarette Lighter Socket and 2 USB Ports of 3.4 Ampere, in your vehicle, boat or camper. Connect the wire to a 12 Volt power point and install the power outlet on a location that is convenient for you.

30512V2USB Photo Product in Packing

Photo: Wilson 12-Volt Power Outlet – product in packing

USE IN 24VDC VEHICLES

In Europe it is common to have 24VDC power systems in trucks. But in USA the trucks are mostly 12 Volt, same as regular cars and pick-up trucks or 4×4 cars. You will not find Wilson 24VDC accessories but that does not mean some of these cannot be used for 24 Volt systems too. It will never turn 12VDC in to 24VDC ! But in cases you want to move the location of your 24VDC source it is possible to use such an accessory.

But be aware if the accessory has a USB port you certainly can not use it on a 24VDC source. In that case the 12 Volt is turned in to the 5VDC for the USB port. Putting 24V on the system can destroy the USB outlets.

30512VPP Photo HQ

Photo: 12-Volt Power Plug – A Great Solution

MIDLAND H3 – NEW LOW COST ACTION CAMERA

H3 Photo LQ W400

Midland completes the new H series with a simple and essential model, the perfect solution for those who approach the action cam world for the first time.

Midland H3 is a HD ready action cam with 1280x720p resolution, characterized by a frontal form factor. Its wide 2” LCD display allows to frame, easily adjust the settings and reproduce pictures and videos.

H3 is equipped with 120° wide angle lens and image stabilizer for excellent shoots, also for extreme use. H3 is a simple action cam, with small dimensions and low price, but it has the maximum quality level that characterizes the Midland action cams.

It is equipped with multiple functions, among with the time lapse (photo sequence at pre‐set time), selftimer (self shoot) and CAR DVR: H3 can be installed in the car and it continuously records what happens while driving.

H3 is also equipped with a submersible case that protects it from water up to 30 meter depth, but also from mud and dust.

H3 in submersible casing v2

The accessories supplied with the H3 allow different uses of the action cam; for example it can be mounted on helmets, handlebars and bike helmets. It is possible to create every solution fitting your needs!

COMPLYING TO CE/99/05

Main features:

  • Video resolution: 1280×720 (HD) / 640×480 (SD) @30fps
  • Photo resolution: 5/3/2/1 MP
  • Wide angle lens: 120°
  • Sensor: CMOS 5MP
  • Aspect ratio: 16:9
  • Format: AVI
  • Li‐Ion battery pack 900mAh up to 110 min
  • SD card: up to a 32Gb (optional)
  • Dimensions: 41x59x29mm
  • Weight: 58g (with battery)

The package contains:

  • H3 Action camera
  • Submersible case up to 30m (compatible with H5)
  • Interchangeble front cover (black/orange)
  • Li‐Ion 900mAh battery pack (compatible with H5)
  • USB cable
  • 10 mounting supports

H3 packing contains v2

Optional accessories:

  • ACC‐H3 Set of accessories – code C1244
  • WPC‐H5 Submersible case up to 30 m, compatible with H3 and H5 – code C1247
  • PB‐H5 Li‐ion 900mAh 3,7V battery pack, compatible with H3 and H5 – code C1246
  • Chest mount – code C1115
  • XT POD MINI Monopod mount 18 cm – code C1116
  • XT POD 2S Telescopic multicam 2‐section monopod 80cm – code C1116.01
  • XT POD 3S Telescopic multicam 3‐section monopod 112cm – code C1116.02
  • Suction cap mount– code C980.01
  • Universal mount for rifles – code C1064.01
  • RAM roll bar mount – code C1042
  • RAM Moto‐Quad mount – code C1052
  • Handlebar mount – code C992
  • Cap mount – code C1012
  • Tree mount – code C1062
  • Bow mount – code C1068



H3 Photo LQ W400

JANNIE HEIJMANS – WE WILL MISS HER

Jannie Heijmans

Photo: Jannie Heijmans

Writing a blog is one. But making a blog look good and consistent is a different job. For several years I was blessed with the help of Jannie Heijmans. I wrote an article and she took care of putting it nicely in the WordPress blog system. That worked great as I messed up the layout constantly.

Friday morning we got the very sad message she suddenly passed away. She will be missed by her family and friends and certainly by me.

So if the coming blogs looks less appealing, it is me to blame.

THANK YOU Jannie for being a great friend !

MIDLAND ARTIC – NEW PORTABLE VHF MARINE RADIO



01Photo: Midland ARCTIC

Since many years Midland offers portable VHF marine radio’s. Most of their models looked like cheap PMR446 radio’s.
The new Midland ARCTIC has the look and the feel of a real professional VHF marine radio. With a consumer price around Euro 150 -175 we think there is a good market for Midland.

The only comment I have is the lack of ATIS. In The Netherlands and some other European countries ATIS is a ‘need’. Now the sales market is limited to those countries that do NOT have a need for ATIS and for boats with international vhf marine use.

FEATURES, FUNCTIONS AND SPECIFICATIONS:
◾ ARCTIC is the new handheld marine Transceiver able to satisfy the Communications Requirements for all types of Navigation.

◾ ARCTIC is an Electronically advanced equipment that enables clear and reliable communications on the 57 International Channels of the VHF Nautical Band.

◾ Rugged and with professional design, it boasts a metallic chassis that guarantees max robustness and the IP67 certification: total protection from dust and from the immersion in water up to 1m depth for 30 minutes.

◾ It offers security thanks to the dedicated button “16” that gives instant access to the emergency channel 16.

◾ Amongst the various features of this radio we emphasize the Dual Watch and Triple Watch to monitor 2 or 3 channels of your choice, the setting of the priority channel that will be monitored in the Triple Watch function and the squelch adjustable in 10 different levels.

◾ The LCD display and the backlit keypad allow to use the radio also in darkness or poor visibility conditions. For a better efficiency, ARCTIC is supplied with a Li‐Ion 1600mAh battery pack.

◾ Thanks to the optional programming software PRG‐G15, it is possible to manage and program some functions such as the operating band, Power save, VOX, channel scan, voice announcement, private channels and many others.

◾ For extra EU market only: besides the international band, ARCTIC is featured with the USA and CAN (Canada) bands.

◾ COMPLYING TO 99/05/CE.

MAIN FEATURES:
◾ 57 International Channels.
◾ Transmission Power: 5W/1W.
◾ IP67 Certified.
◾ Instant access to the Emergency Channel 16.
◾ Dual Watch and Triple Watch.
◾ Priority Channel selection.
◾ Li‐Ion 1600mAh Battery Pack.
◾ Backlit LCD Display and Keypad.
◾ Scan, Vox.
◾ Keypad Lock.
◾ External Jack: 2Pin Motorola Type.
◾ Weight: 240 gr (with Battery).
◾ Dimensions: 54 x 113 x 35mm.
◾ Color: BLACK.
◾ Audio Accessory Jack, 2-Pin, Motorola Wiring.

FEATURES, FUNCTIONS AND SPECIFICATIONS:
◾ ARCTIC is the new handheld marine Transceiver able to satisfy the Communications Requirements for all types of Navigation.

◾ ARCTIC is an Electronically advanced equipment that enables clear and reliable communications on the 57 International Channels of the VHF Nautical Band.

◾ Rugged and with professional design, it boasts a metallic chassis that guarantees max robustness and the IP67 certification: total protection from dust and from the immersion in water up to 1m depth for 30 minutes.

◾ It offers security thanks to the dedicated button “16” that gives instant access to the emergency channel 16.

◾ Amongst the various features of this radio we emphasize the Dual Watch and Triple Watch to monitor 2 or 3 channels of your choice, the setting of the priority channel that will be monitored in the Triple Watch function and the squelch adjustable in 10 different levels.

◾ The LCD display and the backlit keypad allow to use the radio also in darkness or poor visibility conditions. For a better efficiency, ARCTIC is supplied with a Li‐Ion 1600mAh battery pack.

◾ Thanks to the optional programming software PRG‐G15, it is possible to manage and program some functions such as the operating band, Power save, VOX, channel scan, voice announcement, private channels and many others.

◾ For extra EU market only: besides the international band, ARCTIC is featured with the USA and CAN (Canada) bands.

◾ COMPLYING TO 99/05/CE.

MAIN FEATURES:
◾ 57 International Channels.
◾ Transmission Power: 5W/1W.
◾ IP67 Certified.
◾ Instant access to the Emergency Channel 16.
◾ Dual Watch and Triple Watch.
◾ Priority Channel selection.
◾ Li‐Ion 1600mAh Battery Pack.
◾ Backlit LCD Display and Keypad.
◾ Scan, Vox.
◾ Keypad Lock.
◾ External Jack: 2Pin Motorola Type.
◾ Weight: 240 gr (with Battery).
◾ Dimensions: 54 x 113 x 35mm.
◾ Color: BLACK.

PACKING INCLUDES:
1 Pc of Transceiver.
1 Pc of Li‐Ion 1600mAh Battery Pack.
1 Pc of Belt Clip.
1 Pc of Desktop Charger.
1 Pc of Wall Adaptor.
1 Pc of User Manual in English and German.

02Photo : Midland ARCTIC – Professional feel and look
